0.8-3mm 220V CX500S Geomembrane Welding Machine with Digital Display for Damliner

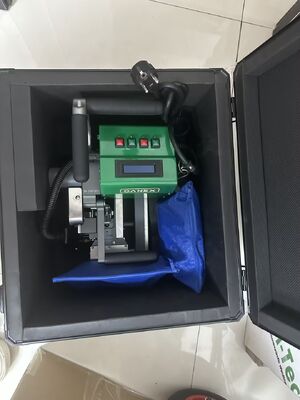

Großes Bild : 0.8-3mm 220V CX500S Geomembrane Welding Machine with Digital Display for Damliner

Produktdetails:

Herkunftsort:	China
Markenname:	MM-Tech
Zertifizierung:	CE
Modellnummer:	CX500S

Zahlung und Versand AGB:

Min Bestellmenge:	1 SATZ
Preis:	US$2000-US$2100/set
Verpackung Informationen:	Aluminiumbox
Lieferzeit:	5-8 Werktag
Zahlungsbedingungen:	T/T, Western Union
Versorgungsmaterial-Fähigkeit:	1000 Stück pro Woche

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	CX500S Geomembran-Schweißgerät	Stromspannung:	220V
Frequenz:	50Hz	Leistung:	1400W
Schweißgeschwindigkeit:	0-8m/min	Dicke des Schweißmaterials:	0,8 mm-3mm
Heiztemperatur:	0-450℃	Nettogewicht:	10 kg
Schweißweg:	Gleiche Schweißmethode und beidseitige Schweißmethode

0.8-3mm CX500S Geomembrane Welder Machine For Damliner

Product Overview

The CX500S geomembrane welding machine is engineered for reservoir tank applications, featuring copper or brass hot wedges to ensure efficient and precise welding processes. Designed to handle membranes of various materials, this machine offers exceptional performance for geomembrane welding projects with thickness ranges from 0.8mm to 3mm.

Built with German-imported bearings for superior stability and durability, the CX500S ensures long-term reliable operation. The equipment incorporates imported heating elements capable of maintaining stable high-temperature performance, while interchangeable welding nozzles adapt to diverse welding requirements.

Technical Specifications

Voltage	220V
Frequency	50HZ
Power	1400W
Welding Speed	0-6m/min
Heating Temperature	0-450℃
Welding Material Thickness	0.8mm-3mm
Welding Seam Strength	≥85% original material
Overlap Width	100mm
Net Weight	10kg
Welding Seam Width	16mm*2, interior cavity material

Key Features

Computer chip programming controls temperature and speed with digital LCD display
Copper hot wedge provides 4x better thermal conductivity than brass
50mm wading depth capability (water ≤50mm will not damage machine)
Curved tube heating cartridge design
German-imported bearings throughout the machine
Advanced helical gear transmission technology in gearbox
Stainless steel armor shell temperature sensor resistant to acid and alkali corrosion

Product Advantages

Main Frame Design

Constructed from die-cast aviation aluminum with surface painting, providing lightweight yet robust construction.

Precision Bearings

CNC-machined bearing positions and screw holes utilizing Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

Digital Display Screen

Computer chip programming controls temperature and speed with clear digital LCD display.

Pressure Adjustment

Ergonomic double handle design with high-strength spring pressure nuts for easy adjustment.

Hot Wedge

Copper hot wedge offers superior thermal conductivity and viscosity, with secure fixing screws.

Heating Cartridge

50mm wading depth capability with curved tube design for optimal performance.

Applications

Mining: Mine wastewater treatment, waste residue management, tailings leakage prevention
Environmental Engineering: Landfill construction, sewage treatment plants
Aquaculture: Aquaculture ponds, fish ponds, shrimp ponds, and similar applications
